Thermal FOIL pallet cover.

Designed to fully wrap around the pallet load and thermally protect from heat loss or gain.

Dynachill Thermal Plus foil pallet covers provide solar radiation protection to temperature controlled goods when exposed to direct sunlight. This is the primary cause of temperature excursions.



This waterproof foil cover has high heat and solar resistant qualities which virtually eliminates the transfer of heat to the goods within.



It is designed to be single use, although it can be reused if the base sheet is not sealed to the cover.

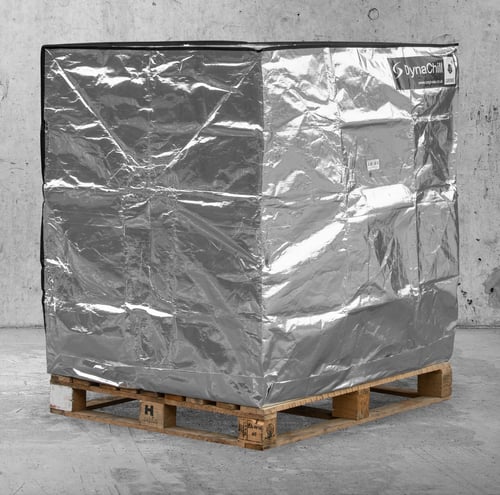

Pallet Cover on concrete bg copy 2000 x 2000px (file 2016x1998)

MULTI CLIMATE LAYER TECHNOLOGY

DynaChill is designed for transporting temperature controlled pharmaceutical, medical, perishable and electronic goods, used within the frozen (-20C), chilled (2-8C) and controlled ambient (15-25C) temperature ranges.



Laminated layers

  • Metallised polyethylene (MET PET) is stronger and more reflective than foil. It reflects more than 95% of the thermal energy from the sun.
  • Low density polythene (LDPE) provides the strength giving a high puncture resistance and tearresistance.
  • Non woven material (NON WOVEN) provides a layer of thermal insulation.

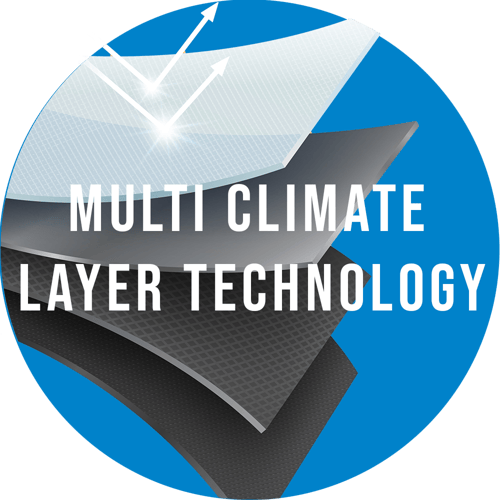

Multi climate layer technology

DOUBLE SIDED FOIL COVER



Introducing our premium lightweight thermal performance cover, designed to provide exceptional protection and insulation. This innovative cover is crafted with five layers seamlessly laminated together. Each layer is meticulously crafted using pure aluminum, metalized polyester, and polypropylene non-woven fabric, resulting in a highly effective shield against temperature fluctuations.



Boasting an impressively thin structure, measuring only 0.15 mm in thickness, this cover offers a lightweight and flexible solution without compromising on performance. It is specifically tailored for temperature-sensitive products, ensuring optimal protection within the range of 15 to 25 degrees Celsius and keeping them well below 40 degrees Celsius.



Experience the unbeatable combination of quality, durability, and superior insulation with our double-sided foil cover. Trust in its ability to safeguard your valuable goods and maintain their integrity, no matter the conditions.

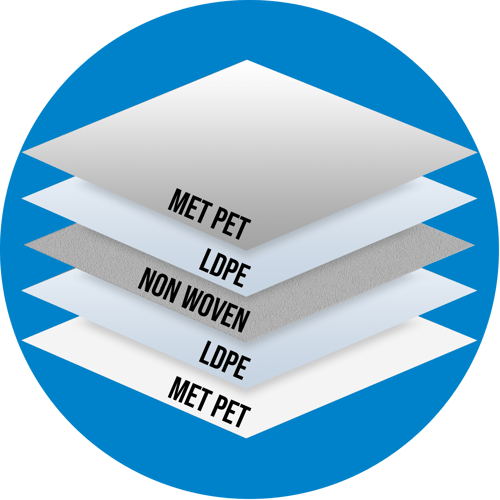

DOUBLE SIDED FOIL Layers 22

SINGLE SIDED FOIL COVER



Introducing our value-packed lightweight thermal performance cover. Crafted with care, this cover is made up of three layers expertly laminated together. It boasts the thinnest, lightest, and most cost-effective grade of thermal pallet covers.



With its METPET reflective surface on the outside, laminated with polypropylene non-woven material, it provides unparalleled protection. Ideal for temperature-sensitive products with a lower value, it is recommended for use in temperatures below 40 degrees Celsius.



When you require precise temperature control, as well as defense against the elements and moisture, look no further than this cover. It truly is the best option available.

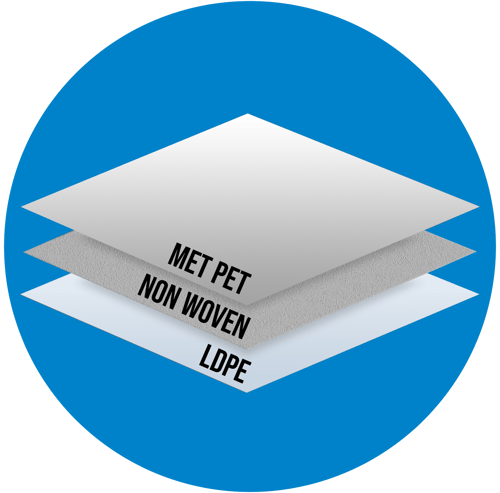

Single Sided Foil Layers 22

STANDARD SIZES



Length (mm) Width (mm) Height (mm)
1200 1000 1200
1200 800 1200
1200 1000 1600
1200 800 1600

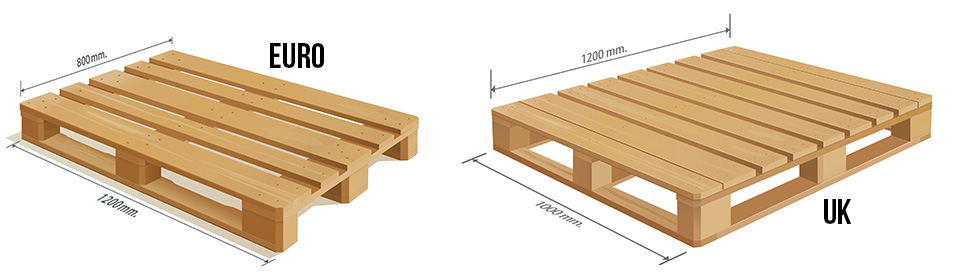

Montage of drawingings og UK and EURO pallet sizes-1
What are my options for transporting temperature sensitive goods?

The four main transport methods are ROAD, RAIL, SEA and AIR.

All these methods are selected for different reasons with sea freight being the cheapest and is considered the most eco-friendly, but it takes a lot longer than the other options partly due to delays at port and time taken to unload the ships.

Continue reading HERE

How does a foil pallet cover keep stuff cool?

In the context of transporting temperature sensitive goods, most temperature spikes are caused by exposure to direct sunlight.

The reflective 'foil' outer provides excellent protection against this heat from radiation.

The non-woven and fibre fill components provent heat passing through via conduction or convection.

To find out more read out blog HERE.

AdobeStock_374231061 heat transfer methods [Converted]



How do I decide what is the best thermal cover option for me?

Obviously we can help you with this, but here are some key points that will help you decide.

  • Will you be able to reuse the cover, or is it being used to protect a delivery to a customer and it will not be feasible to get the cover returned?
  • How many days will your product be outside a controlled environment?
  • What is the method of transportation? Road, sea or air?
  • Does your product require the temperature to be kept between 2 degrees Celcius and 8 degrees Celcius? Or will the temperature range be 15 degrees C to 25 degrees C?
  • Do you currently have issues with temperature spikes?

These are questions we will ask you in order to ascertain the best solution for you.

For more information please read our blog:

How do I decide what is the best thermal cover option for me?

How do I apply a foil pallet cover over a pallet?

How to apply a foil cover banner-1



Which type of thermal cover is most effective?

This BLOG summarises some test data from high ambient temperature tests and shows the comparative effectiveness of four different covers.

This gives some insight which will help you to decide on the best thermal protection solution.


REVIEW - CUSTOMER TESTAMONIAL

Hi Russell,

"Thought you would like to see this. We had an offload for one of our customers so their freight was delayed quite heavily.

Your strip gel and thermal blanket solutions’ performance was amazing. To maintain temperature for 3 days (and probably had a few more hours left in it too!) is exactly why we love working with you guys.

Please pass on my customers thanks to your team, hopefully makes your hard work seem worth it!!!"

Kuehne and Nagel Temperature data for load stuck in Qatar    LHR - DIA - HKG
